Easy Control China Factory 2019 Battery Powered 48v 800w 3 Wheeler Electric Tricycle with Carrier

  • 20 - 53 Sets
    $500.00
  • 54 - 299 Sets
    $480.00
  • >=300 Sets
    $470.00
Model Number:
QS-E1.5
Lead Time:
Quantity(Sets) 1 - 400 >400
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Use For:
max 500kg cargo transportation
Driving Type:
differential
Body Type:
Open
Certification:
CCC
Power:
> 800W
Voltage:
48v
Brand Name:
Qiangsheng
Place of Origin:
Hebei, China (Mainland)
Size:
2800*1000*1300mm
Whole size:
2800mm*1000mm*1300mm
Loading capacity:
500kg
Top Speed (km/h):
≤40
Color:
Blue, red, sliver or customized
Transmission mode:
Differential Drive
Motor:
48v 800w
Controller:
24 Tubes
Battery:
48v 32ah lead acid battery
Brake:
Drum Brake
Charging:
6-8 Hours , 220v 50Hz
Supply Ability
Supply Ability:
8000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packaging Details: CKD with fabric and paper box bubble film
Port
Xingang Tianjin China
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 400 >400
Est. Time(days) 15 To be negotiated
Video Description
Auto Tricycle

Electric Auto Tricycle with Carrier for max 400kg

Cargo Loading Ticycle


Our classicical auto electric tricycle cargo loading tricycle with carrier is suitable for transportation of big size but not very heavy cargo. It is important cargo transporation tool for small business and family. It 100% electricity power which is ECO friendly and cost effective comparing with gasoline tricycles. Usually 8kwh for 1km by electric tricycle comparing with 7L petrol for 1km by car.

Specification Details
Whole size
2.8m*1m*1.3m
Ground clearance
25cm
Controller
24 tube controller
Motor
48v 800w BLDC motor
Rear loading body size
1.5m*1m
Suspension
dia 37mm shock absorber and rear 5 layers leaf springs
Loading capacity
400KG
Brake
two dia160mm drum brakes
Speed
Max 35km/h, three variable speed levels
Climbing ability
20 degree angle
Driving direction
Both forward and backward
Speed control
3 speed levels control
Lamp
LED lamps
Horns
single type
Charing time
8-10 hours
Mileage per charging
40km for 48v 32ah battery .

Function Buttons On The Right Handle Switch

Here are headlight on&off button, driving forward and backward buttons and three level speed level control button.

Function Buttons On the Left Handle Switch

Here are indicators control buttons, turning horn buttons.

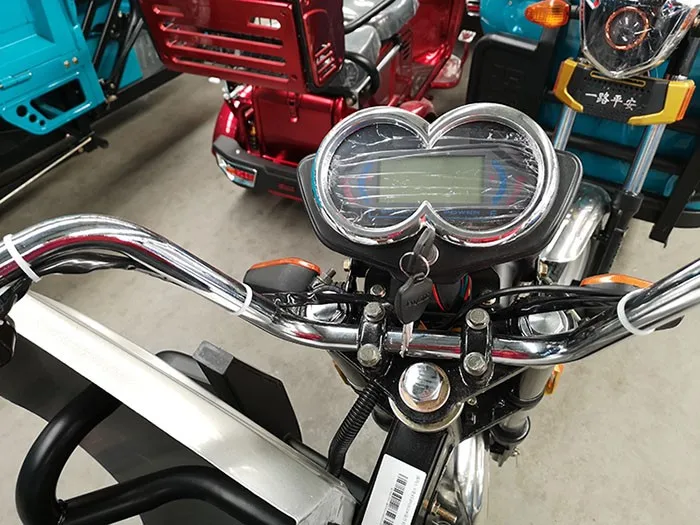

LCD Speedometer

We use digital speedometer for helping the driving decide the driving speed.

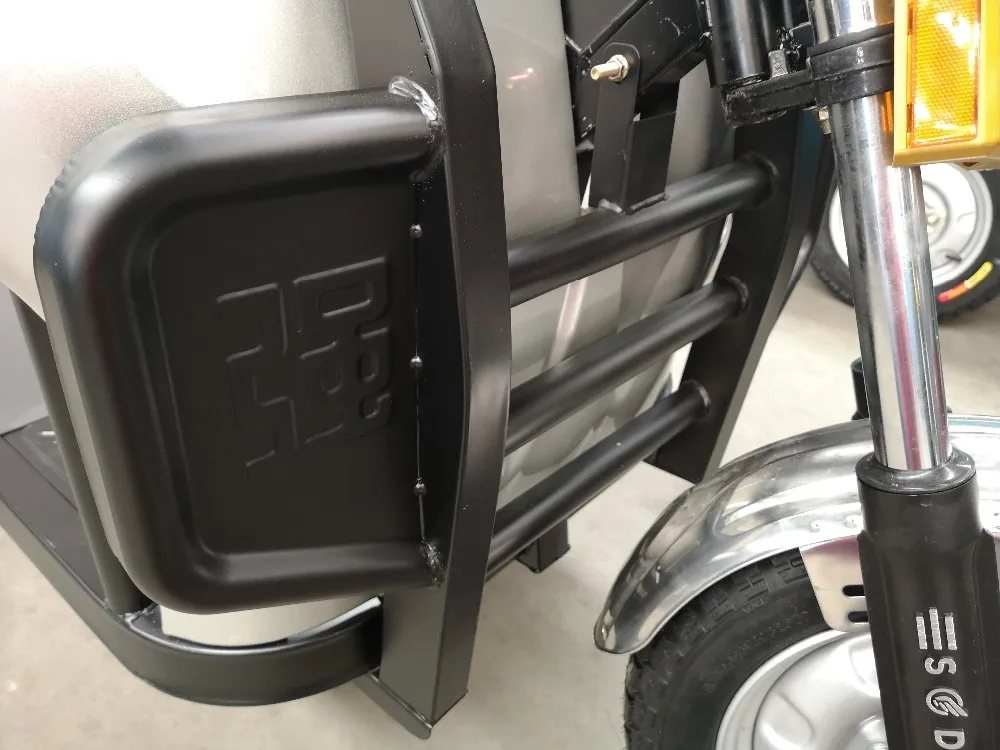

Strong Front Bumper

Apart from the windshield plate we arrange front bumper as well for safer driving environment .

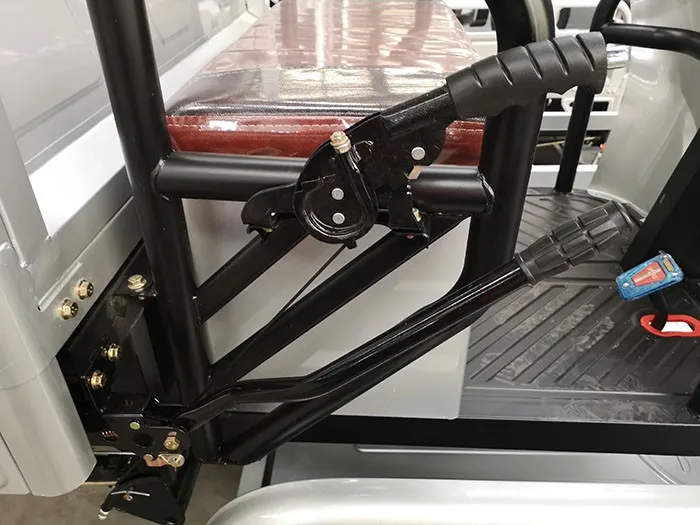

Footbrake, Handbrake and Speed Shift

Two rear drum brakes footbrake design make our tricycle has a sensetive brake ability. Handbrake make sure that the vehicle is parking stable after stop. Speed shift funtion make the vehicle have better climbing capacity.

High Efficiency Drum Brakes

We use drum brakes for the brake system which is same design as many heavy load gasoline tricycles.

Motor Gear Box Shifting Bar

The ratio shiting functiong make the battery powed 3 wheel keep moving forward when climbing with heave cargo.

High Quality Shock Absorber

We use 42 hours anti-corrison tested shock absorber which have better anti-corrision ability and long life span. The bigger diameter of the shock absorber make the driving more comfortable.

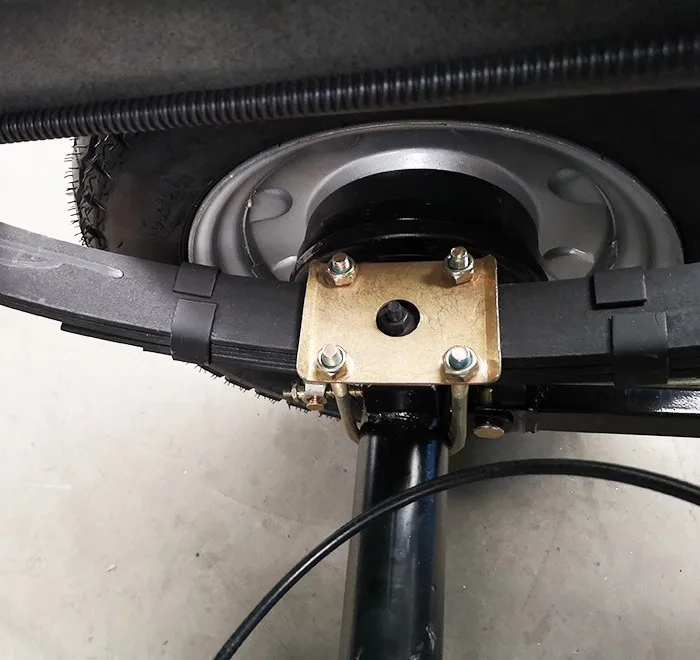

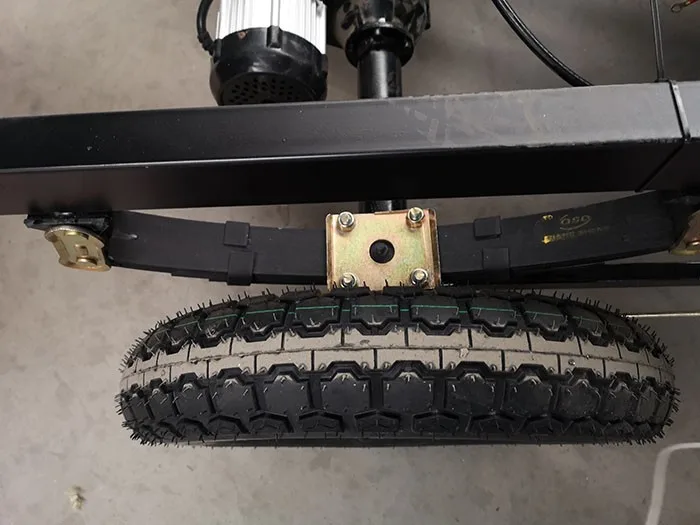

Rear Leaf Spring

We use 5 layer leaf spring to reduce the shock of the goods picking up body. It makes our tricycles has better capacity to meet different road requirement.

Tricycle Quality


Our 3 Wheeler Electric Tricycles for


Cargo Transportation Have CCC


CertificateDriving Safety is The Most


Important Aspect When We Design and


Produce.

Color Choice

Our electroplating and baking finish


plants can give our electric three


wheeler car level painting.


Customers can choose the colors those their marktet prefer. Our electroplating and baking plants give our electric 3 wheeler a high quality resistant to rust. We will make decoration sticker on the finished surface according to customers' requests as well.
Warranty


Provide Warranty for Electric Tricycle Three Wheel Customers

Quanlity guarantee period ( driving under normal conditions) Brand motor and battery: 6 months
We will give you a CD to show you how to assemble electric tricycle. If any unclear, you can also contact us.
Body frame: 2-3years
We will give you a CD to show you how to assemble electric tricycle. If any unclear, you can also contact us.

Cargo Tricycle


CKD Packing 3 Wheeler Electric Cargo


Tricycle Cuts The Cost of Sea Freight


and Importing Tariff of Customers

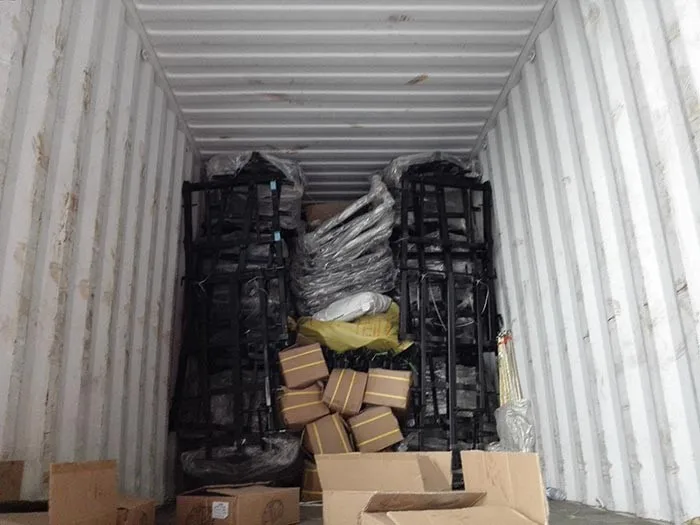

We export the full set of 3 wheel electric tricycle spare parts by completely knocked down of the vehicle.  Sea freight will be reduced by ckd packing.

All the spare parts will be keep good condition for assembling as well by packing with bubble warp, carton, woven plastic bag and wooden case.

For each container products we will check the quality and quantity from preparing to loading.

Electro-Tricycle

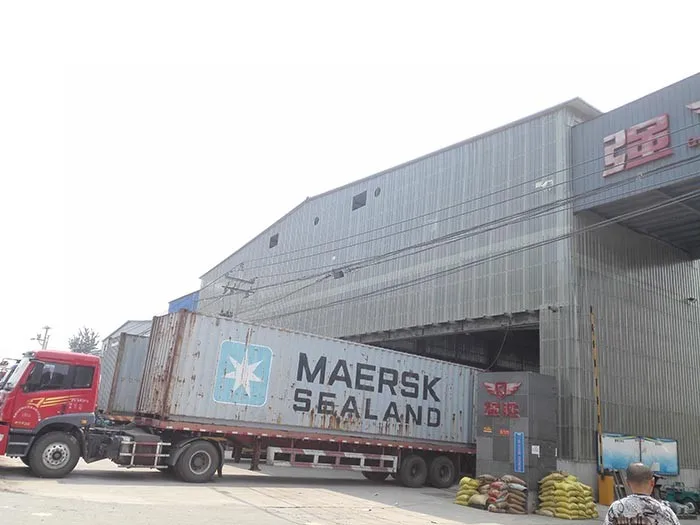

Delivery Time: 15 days.

We delivery our electric tricycle to India, Bangladesh, Nepal, Chile,Mexico with 80 containers every month.

Having rich experience of service for and dealing with shipment issues.

Welcome to contact us and visit our factory.  My wechat: +8615831616682
