Lithium ion battery 18650 3.7v 2000mah rechargeable li-ion battery with PCM and molex-5264-3pin connector make in china

FOB Reference Price:Get Latest Price
$1.00 - $25.00 / Pieces | 100 Piece/Pieces (Min. Order)
Nominal Capacity:
2600mAh
Nominal Voltage:
3.7V
Battery Size:
18*65mm
Lead Time:
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 5000 Pieces)
Customized packaging (Min. Order: 5000 Pieces)

More

Graphic customization (Min. Order: 5000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
QS POWER
Model Number:
18650
Type:
Li-Ion
Anode Material:
NCM/LiCoO2
Housing:
Metal, Plastic, Shrink Film
Application:
Power Tools, Electrocar, Energy storage, LAPTOP, MOBilePhone
Certification:
UL, ce, CE/RoHS/UN38.3/MSDS
Weight:
50g
Model Number::
18650
Type::
li ion
Cycle life:
500 Times
Product name::
lithium ion 18650
color:
Blue
Warranty::
12 months
Keywords:
rechargeable li-ion battery
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export carton packaging
Port
hongkong
Lead Time :
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 15 To be negotiated
Product Description

Lithium ion battery 18650 3.7v 2200mah /2000mah /2600mah rechargeable li-ion battery with PCM and molex-5264-3pin connector make in china

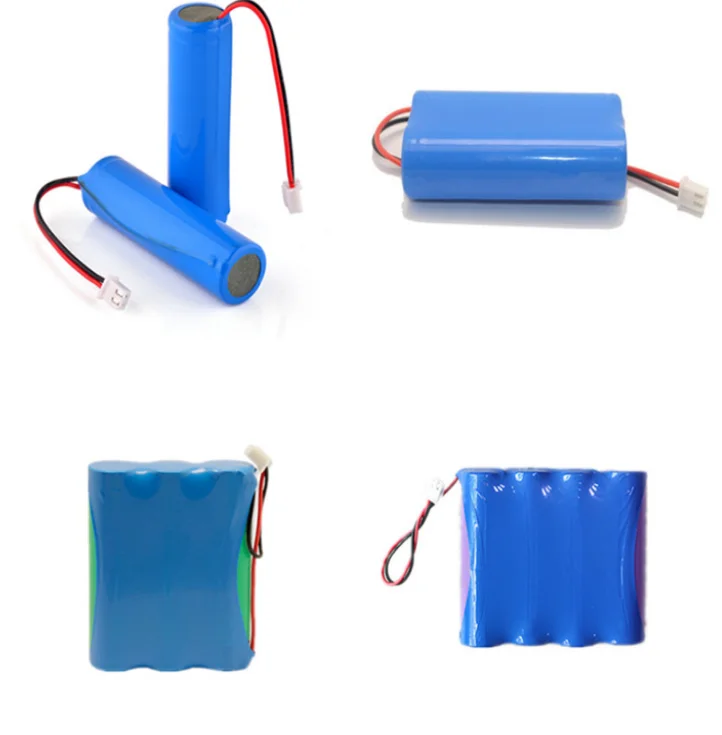

Detailed Images

Specifications for Lithium ion battery 18650 3.7v 2200mah /2000mah /2600mah rechargeable li-ion battery with PCM and molex-5264-3pin connector make in china


Nominal Voltage
3.7v
Nominal Capacity
2600mah
Standard Charge Current
Standard Charge Current
Max. Charge Current
1C (Ambient temperature 25℃)
Continuous Discharge Current
1C (Ambient temperature 25℃)
Peak Discharge Current
3C (Ambient temperature 25℃)
Charge Cut-off Voltage
4.2V
Discharge Cut-off Voltage
3V
Inner Resistance
≤60(AC Impedance, 1000 Hz)
Weight
≤48g
Dimension
Length: 65.3 mm Width: 18.4 mm
Operating Temperature
Charging: 0°C ~ 45°C

Discharging: -20°C ~ 55°C
Storage Temperature
optimal store temperature of 23 ± 5°C for long term storage
Life Cycle
1000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)

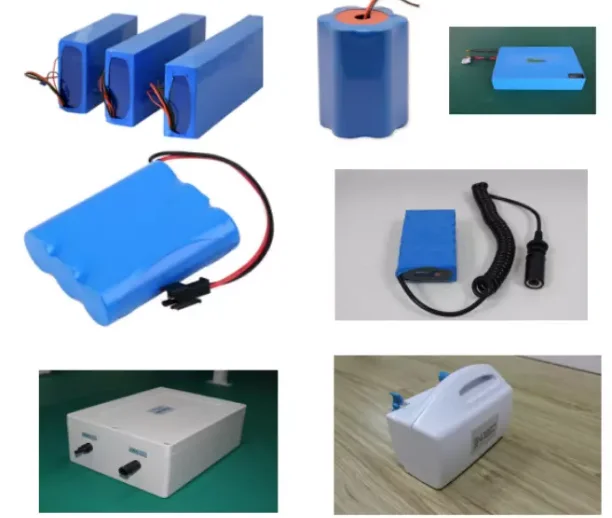

Related Products

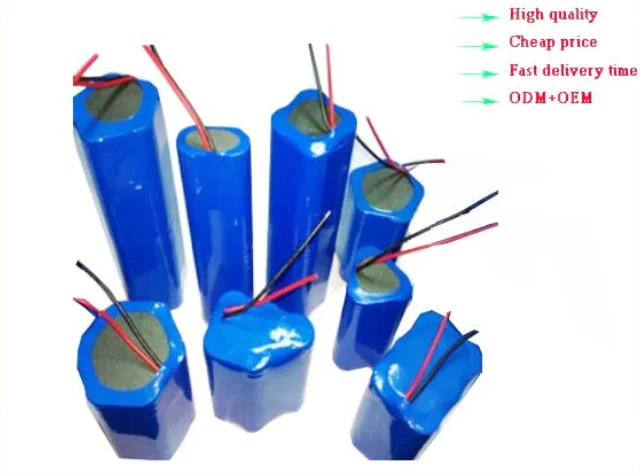

18650 Li Ion Battery cell and battery pack



Li-ion Battery Application:


1. Safety: safest Li-Ion battery, CE ROSH approved, built in PCM/PCB, none fire or explosive

2. Clean and Green energy, no toxic material contained

3. Powerful battery

4. Long life cycle, 80% capacity remain after 500 times deep cycle.

5. No memory effect,highly efficient charge anytime, no reduction of capacity

6. Operation temperature: -20~70°C

7.Small size, light weight:

8. Good performance at high temperature and high temperature resistance

9. Low self-discharge rate: < 3% monthly

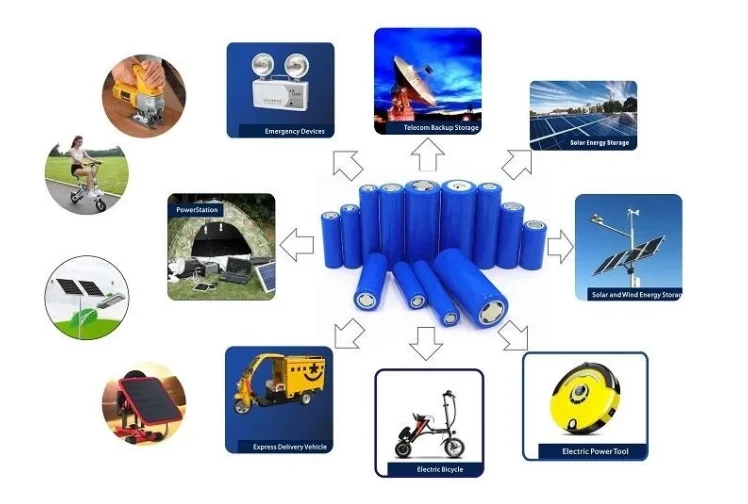

Product Application
Packing & Delivery

1,by UPS/DHL/FEDEX( It takes 3-5 days to arrive after all details confirmed)

2,by air cargo( It takes about one week to arrive after all details confirmed)

3,By sea shipment ( It takes about one month to arrive after received the deposit and confirmed all details )

4,Port:FOB Hongkong or CIF terms.

5,Shipment date within 20-30 days after confirmed all information and received the deposit.

6,payment terms:TT /LC

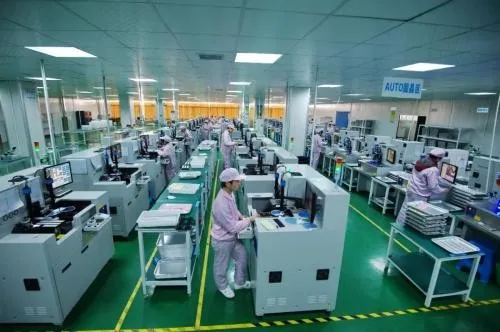

Our Company

QSPOWER(zhuhai) Co.,LTD

 QSPOWER(zhuhai) Co.,LTDwas founded on 2018 belonging to Qiangsheng Goup(UK) Co.,Ltd which focus on green energy products production since 2012.

QSPOWER have the strong technique support group which have the well-known expert form America and Taiwan. QSPOWER has extensive experience with every facet of the design and manufacturing process of batteries.

QSPOWER are focus on Green energy solution, such as lithium battery technique R&D, battery testing, battery cell supplying chain, battery packing and customized green energy solution project.

QSPOWER has the experience and resources to help design engineers ensure a smooth design process and project management meet delivery schedules. We are willing to invest together for potential good project and business partner. New developing requirements are welcome always.

Here are some general categories of markets we are in.

Vehicle battery

Energy Storage

Power bank

Power tool battery

Portable Medical battery

Customized batteries


FAQ

1,Q: What's the main product in QS?

A: .Electrical & battery rickshaw, and power battery pack(electric vehicle ,energy storage battery ,power bank,and customized batteries.power tool battery ,portable medical battery ,and so on.)

2,Q: What is overcharge?


A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode. Observe changes in battery appearance.

3,Q: What is over discharge?

A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance

4,Q: Can I have a sample order?

A: Yes, we accept sample order to test and check quality. Batteries can be made as require.

5,Q: Do you have MOQ limit?

A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.

6,Q: How about the lead time?

A: Samples will takes 5-7 business days. Mass production will takes 15-25 days. It depends on quantity.

7,Q: How about shipping and delivery time?

A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.

8,Q: What about after-sale service?

A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
